non destructive testing

Energy Impulse Thermography

A new non-destructive testing technique

  • No limitations of substrate and coating material
  • Fast method (scanning of m² in minutes)
  • Non-contact measurement
  • Non-destructive
  • Easy to apply
  • High resolution (down to several μm)
  • Penetration depth up to several mm
Measurement, control and determination of:

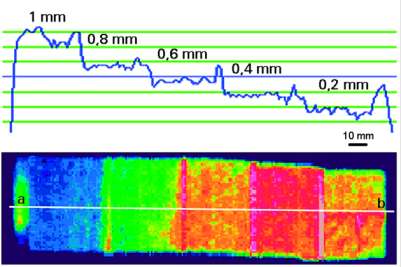

  • coating thickness and profiles
  • local defects (e.g. cracks)
  • inclusions
  • bonding defects
  • porosity, voids
  • overall quality
Possible applications:
  • NDT of components Off-Line
  • NDT of components On-Line
  • On-Line process control of thermal process
  • Combined process control and NDT

For more details have a look at the whitepaper: pulse thermography,
or contact
